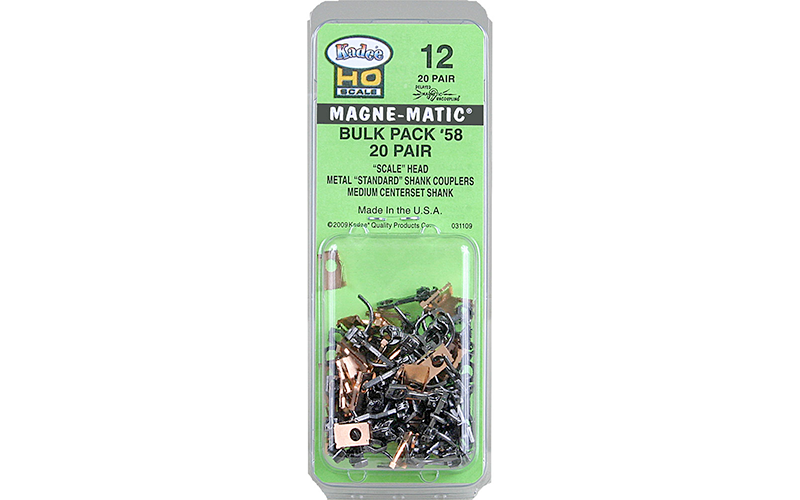

Kadee #12-20 Magne-Matic® Bulk Pack #58 Couplers 20 Pair HO Scale

$82.50
$82.50
Kadee #12-20 Magne-Matic® Bulk Pack #58 Couplers 20 Pair HO Scale

Kadee #12-20 Magne-Matic® Bulk Pack #58 Couplers 20 Pair HO Scale

$82.50
$82.50
Package Includes:
  • (20) Pair #58 "Scale" Metal Couplers - Medium Centerset Shank
  • (20) Pair #634 Centering Spring NO.5® Style
  • Extra #625 Knuckle Springs

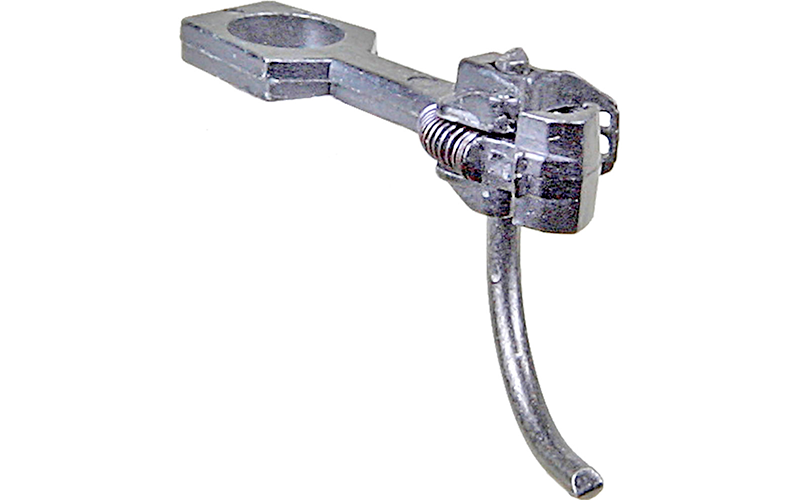

NO.5® Metal Coupler Features:
Material  -   Metal
Shank Length  -   Medium (9/32") (center hole to back of coupler head)
Coupler Offset  -   Centerset
Knuckle Spring  -   #625
Centering System  -   Standard Shank
Centering Spring  -   #634 Centering Spring NO.5® Style
Head  -   "Scale" Head
Works In Place of  -  NO.5®, #28, #118, #119, #148, #158, & most medium centerset "clone" couplers.
Works With  -   #213, #232, #234, #242 draft gear boxes, & most manufacturer cast-on coupler pockets* (molded-on gearbox).
*Note: Some manufacturers now produce models with non-industry standard coupler pockets (molded-on gearbox). These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, a #158 Whisker® coupler should be used unsteady of a #58 coupler. The top of the #158 Whisker® coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.
#232 Plastic Draft Gearboxes & Lids (Not Included) Features:
Material  -   Insulated Plastic
Dimensions  -   29/64"L x 19/64"W x 7/64"H
Works With  -   NO.5®, #58, 20-Series and all Whisker® Couplers

Mounting Specifications:
Mounting Height  -   29/64"
Centerline  -   25/64"
Trip Pin Height  -   1/32"
Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Side Holes  -   0-48 Self-Tapping or 0-80 Machine Screws. (Screw length will vary)

Region

Scale

  • HO Scale

Stock Type

  • Couplers
