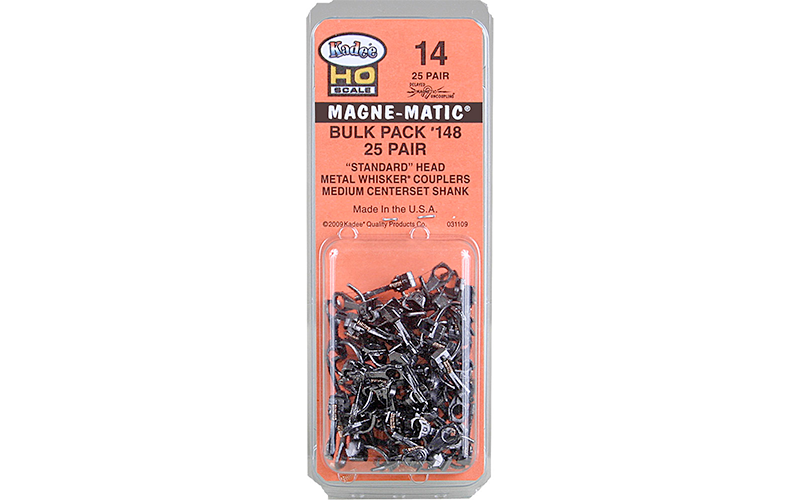

Kadee #14-25 Magne-Matic® Bulk Pack #148 Couplers 25 Pair HO Scale

$111.80
$111.80
Kadee #14-25 Magne-Matic® Bulk Pack #148 Couplers 25 Pair HO Scale

Kadee #14-25 Magne-Matic® Bulk Pack #148 Couplers 25 Pair HO Scale

$111.80
$111.80
Package Includes:
  • (25) Pair #148 Whisker® Metal Couplers - Medium Centerset Shank
  • Extra #622 Knuckle Springs

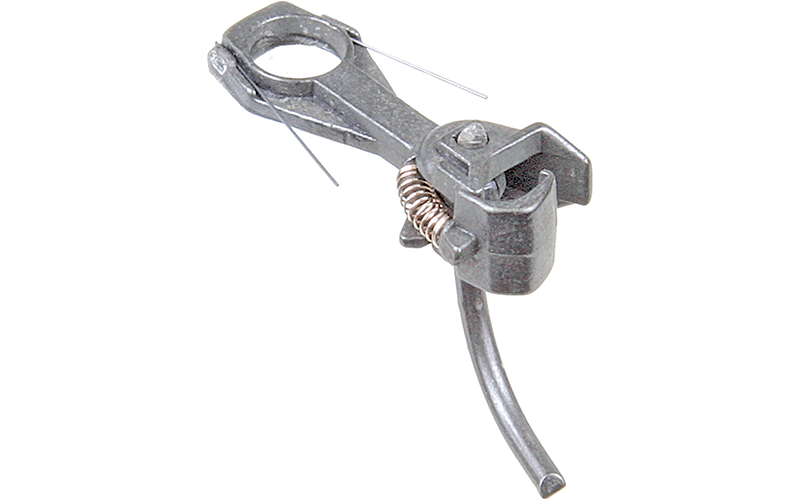

#148 Whisker® Metal Coupler Features:
Material  -   Metal
Shank Length  -   Medium (9/32") (center hole to back of coupler head)
Coupler Offset  -   Centerset
Knuckle Spring  -   #622
Centering System  -   Whisker®
Head  -   Standard Head
Works In Place of  -   NO.5®, #58, #28, #38 (#148 in a #252 box), #118, #119, #158, & medium centerset "clone" couplers
Works With  -   #213, #232, #234, #242, #252, #262, & most manufacturer cast-on coupler pockets* (molded-on gearbox).
*Note: Some manufacturers now produce models with non-industry standard coupler pockets (molded-on gearbox). These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, the top of the #148 Whisker® coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.
Mounting Specifications:
Centerline  -   25/64"
Trip Pin Height  -   1/32"
Center Hole  -   2-56 Insulated Screws are the most commonly used. (Screw length will vary)

Region

Scale

  • HO Scale

Stock Type

  • Couplers
