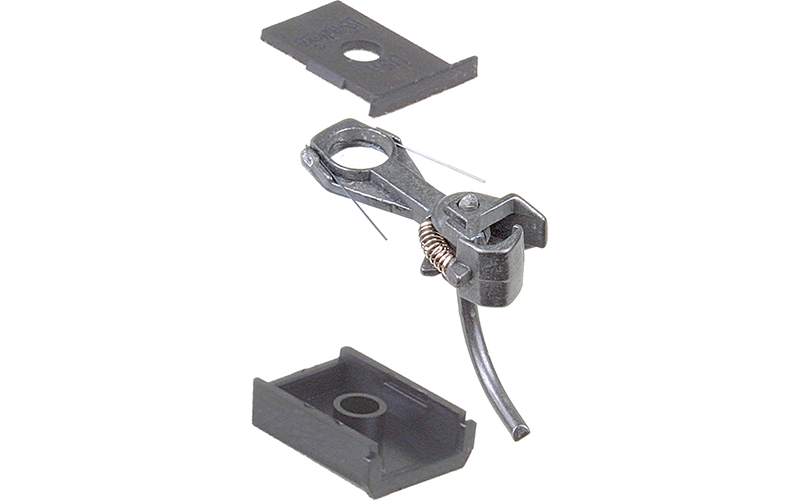

Kadee #143 Magne-Matic® "Standard" Head Metal "Whisker®" Coupler w/ Gearboxes, Short (1/4") Centerset Shank Two Pair HO Scale
$12.70
Sale price
$12.70
Regular price
Skip to product information
Package Includes:
Kadee #143 Magne-Matic® "Standard" Head Metal "Whisker®" Coupler w/ Gearboxes, Short (1/4") Centerset Shank Two Pair HO Scale
$12.70
Sale price
$12.70
Regular price
- (2) Pair #143 Whisker® Metal Couplers - Short Centerset Shank
- (2) Pair #242 Snap-Together Gearboxes
- (2) #622 Knuckle Springs
#143 Whisker® Metal Coupler Features:
| Material | - Metal |
| Shank Length | - Short (1/4") (center hole to back of coupler head) |
| Coupler Offset | - Centerset |
| Knuckle Spring | - #622 |
| Centering System | - Whisker® |
| Head | - Standard Head |
| Works In Place of | - #23, #33 (#143 in a #252 box), Short Centerset "clone" couplers |
| Works With | - #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes |
#242 Snap-Together Gearbox Features:
| Material | - Insulated Plastic |
| Lid Type | - Snap-Together |
| Dimensions | - 7/16"L x 5/16"W x 1/8"H |
| Works With | - NO.5®, #58, 20-Series and 40-Series, All Whisker® Couplers |
Mounting Specifications:
| Mounting Height | - 29/64" |
| Centerline | - 25/64" |
| Trip Pin Height | - 1/32" |
| Center Hole | - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
