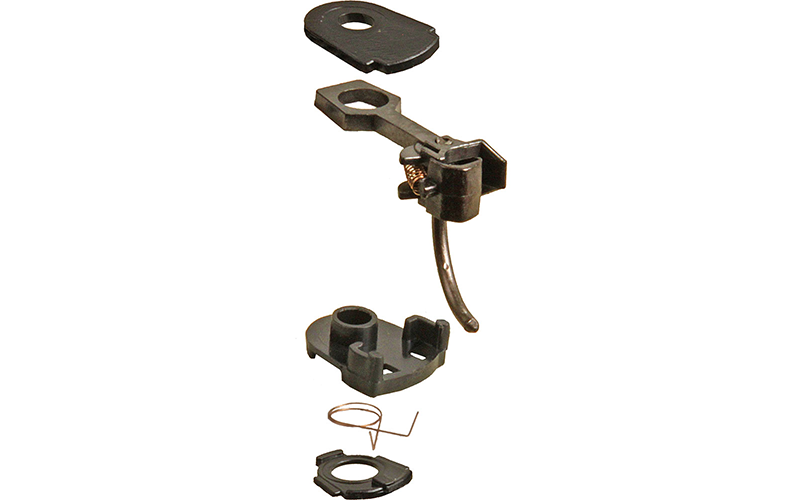

Kadee #32 Magne-Matic® Versatile Coupler & Small Gear Box for Mounting Medium (9/32") Overset Shank Two Pair HO Scale
$12.50
Sale price
$12.50
Regular price
Skip to product information
Package Includes:
Kadee #32 Magne-Matic® Versatile Coupler & Small Gear Box for Mounting Medium (9/32") Overset Shank Two Pair HO Scale
$12.50
Sale price
$12.50
Regular price
- (2) Pair #32 Plastic Shank Couplers - Medium Overset Shank
- (2) Pair #621 Torsion Centering Spring
- (2) Pair #233 Gearboxes & Lids
- (2) Pair #210 Washers
- (2) Pair #256 - 2-56 Screws
- (2) #622 Knuckle Springs
#32 Plastic Coupler Features:
| Material | - Metal Knuckle, Plastic Coupler Shank |
| Shank Length | - Medium (9/32") (center hole to back of coupler head) |
| Coupler Offset | - Overset |
| Knuckle Spring | - #622 |
| Centering System | - Standard Shank |
| Centering Spring | - #621 Torsion Centering Spring |
| Head | - Standard Head |
| Works With | - #233 draft gearboxes |
#233 Plastic Draft Gearboxes & Lids Features:
| Material | - Insulated Plastic |
| Dimensions | - 3/8"L x 5/16"W x 9/64"H |
| Works With | - NO.5®, #58, 20-Series Couplers |
#32 in a #233 gearbox on top. Mounting Specifications:
| Mounting Height | - 35/64" |
| Centerline | - 25/64" |
| Trip Pin Height | - 1/32" |
| Center Hole | - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
#32 in a #233 gearbox on bottom. Mounting Specifications:
| Mounting Height | - 1/2" |
| Centerline | - 25/64" |
| Trip Pin Height | - 1/32" |
| Center Hole | - 2-56 Insulated Screws are the most commonly used. (Screw length will vary) |
